Ball Valve

Scorpio steel ball valves are designed and manufactured to provide maximum service life and dependability. All Ball valves are full ported and meet the design requirements of American Petroleum Institute standard API608 &API 6D. British standard Bs5351 and generally, Conform to American Society of Mechanical Engineers standard ASME B16.34. Valves are available in a complete range of body/bonnet materials and trims.

Modifications Available in Scorpio Valves

  • Trim Changes
  • End Connection Modifications
  • Packing and Gasket Change
  • Operator Mounting
  • Handwheel, Extensions
  • Pressure Equalizing
  • Customer Specified Coatings
  • Weld End Bore Changes
  • Oxygen & Chlorine Clearing & Packaging

Operation

Extended lever for easy operation. also available with gearing motor actuators, pneumatic or hydraulic actuators for more difficult services.

Body & Bonnet

Split or 3-piece, split body & bonnet for 12" & small disassembles easily for repair component.

Bore

Full bore or reduced bore. full-bore design provides exceptional flow control.

End Connections

A choice of flanged, Rh flanged or butt welding end for piping flexibility.

Ranse of Materiamf

Standard body/bonnet materials include WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel. For special applications they can be supplied in other grades of alloy & stainless steel. There's a full range of trim materials to match any service optional packing & gasket materials are available for a full range of service conditions.

Packing

Std packing multiple V-Teflon packing combined with live loading, maintains packing compression under high-cycle and severe service applications. Graphite packing is used for high-temperature situation.

BPS

Blow-out proof stem a pressure-safe stem shoulder design that protects against failure under excess pressure.

Fire safe designed to API607 or BS 6755 to grant their operation suitability in case of fire. Secondary metal-to- metal seal acts as backup if primary seal is destroyed by fire. Valves ordered for compliance with API607 will be provided with graphite packing and gaskets.

Get Quote

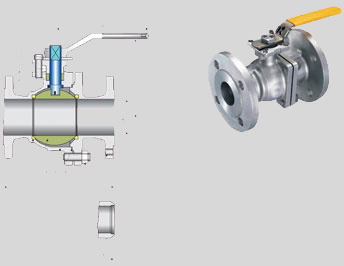

Floating, cast steel ball valve 150 LB

AppLicable Standards

  • Steel Ball Valves API 608/API6D
  • Steel Ball Valves ISO 14313
  • Fire Safe, API 607
  • Steel VaLves ASME B16.34
  • Face To Face ASME B16.10
  • End Flanges ASME B16.5
  • Butt Welding Ends ASME B16.25
  • Inspection And Test API 598/API 6D

Design Descriptions

  • Full Port Design
  • Bolted Bonnet
  • Floating Ball Type
  • Blow-out Proof Stem
  • Fire Durable Construction
  • Anti Static Device
  • Stopper Device
  • ISO 5211 Mounting Pad
  • Ranged Or Butt Welding Ends
  • Available With Bg Operator

Materials Of Parts

S. No. Part Name Carbon Steel Stainless Steel
1 Body A216-WCB A351-CRIM
2 Bonnet A216-WCB A351-CF8M
3 Ball A182-F304 Al 82-F316
4 Steam A276-304 A276-316
5 Seat Ring R.PTFE
6 Bonnet Gasket Graphite+304 PTFE
7 Bonnet Stud A193-B7 Al 93-B8
8 Bonnet Stud Nut A194-2H A194-8
9 Packing PTFE
10 Gland Flange A216-WCB A351-CF8M
11 Gland Bolt A193-B7 A193-B8
12 Stop Plate Carbon Steel Carbon steel +Zn
13 Handle Carbon steel

Dimensional Datas Of Ansi Class 150 Lb

NPS 1/2 3/4 1 1½ 2 2½ 3 4 6 8 10 12 in
DN 15 20 25 40 50 65 80 100 150 200 250 300 mm
L 4.25 4.62 5 6.5 7 7.5 8 9 15.5 18 21 24 in
(RF) 108 117 127 165 178 190 203 229 394 457 533 610 mm
L1 5.5 6 6.5 7.5 8.5 9.5 11.12 12 18 20.5 22 25 in
(BW) 140 152 165 190 216 241 283 305 457 521 559 635 mm
H 2.12 2.12 2.75 3.5 4.12 6.12 7.25 8 10 11 13.5 16.5 in
155 55 70 90 105 155 185 205 255 280 345 420 mm
W 5 5 6 8 14 16 20 20 24 32 32 32 in
130 130 160 200 350 400 500 500 600 800 800 800 mm
Wt(kg.) 2.3 3 4.5 7 9.5 15 19 33 93 160 200 280 BW
1.8 2.8 3.7 6.2 8.5 14 21 35 98 170 225 295

Get Quote

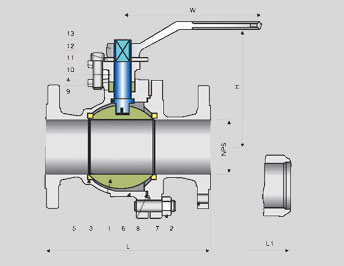

Floating, Cast Steel Ball Valve 300 LB/600LB

Applicable Standards

  • Steel Ball Valves API 608/API6D
  • Steel Ball Valves ISO 14313
  • Fire Safe, API 607
  • Steel Valves ASME B16.34
  • Face To Face ASME B16.10
  • End Ranges ASME B16.5
  • Butt Welding Ends ASME B16.25
  • Inspection And Test API 598/API 6D

Design Descriptions

  • Full Port Design
  • Bolted Bonnet
  • Roating Ball Type
  • Blow-out Proof Stem
  • Fire Durable Construction
  • Anti Static
  • Stopper Device
  • ISO 5211 Mounting Pad
  • Ranged Or Butt Welding Ends
  • Available With Bg Operator

Materials Of Parts

No. Part Name Carbon Steel Stainless Steel
1 Body A216-WCB A351-CF8M
2 Bonnet A216-WCB A351 -CF8M
3 Ball A182-F304 A182-F316
4 Steam A276-304 A276-316
5 Seat Ring R.PTFE
6 Bonnet Gasket Graphite+304 PTFE
7 Bonnet Stud A193-B7 A193-B8
8 Bonnet Stud Nut A194-2H A194-8
9 Packing PTFE
10 Gland Flange A216-WCB A351-CFBM
11 Gland Bolt A193-B7 A193-B8
12 Stop Plate Carbon Steel Carbon steel +Zn
13 Handle Carbon steel

Dimensional Datas Of Ansi Class 300 LB

N PS 1/2 3/4 1 11/2 2 21/2 3 4 6 8 10 in
DN 15 20 25 40 50 65 80 100 150 200 250 mm
5.5 6 6.5 7.5 8.5 9.5 11.12 12 15.88 19.75 22.38 in
(RF) 140 152 190 190 216 241 283 305 403 502 568 mm
L1 5.5 6 6.5 7.5 8.5 9.5 11.12 12 18 20.5 22 in
(BW) 140 152 165 190 216 241 283 305 457 521 559 mm
H 2.12 2.12 2.75 3.5 4.12 6.12 7.25 8 10 11 13.5 in
55 55 70 90 105 153 187 206 255 280 345 mm
W 5 5 6 8 14 16 20 20 24 32 32 in
130 130 160 200 350 400 500 500 600 800 800 mm
Wt (kg.) 2.3 3 5.5 10.5 14.5 23.5 30 55 118 200 250 BW
1.8 2 3.2 5.5 8.7 15 18 36 85 152 182

Dimensional Datas Of Ansi Class 600 LB

NPS 1/2 3/4 1 1½ 2 2½ 3 in
ON 15 20 25 40 50 65 80 mm
L 6.5 7.5 8.5 9.5 11.5 13 14 in
(RF/BW) 165 190 216 241 292 330 356 mm
L2 11.62 13.12 141 2 in
(RTJ) 295 333 359 mm
H 2.38 2.38 3 4 4.75 6.88 8.38 in
61.5 61.5 78 101 120 174 212 mm
W 5 6 8 14 16 20 24 in
130 160 200 350 400 500 600 mm
Wt(kg.) 3.3 4.5 7.2 13.5 19 31 39 BW
2.6 3.1 4.8 6 3 22 27

Get Quote

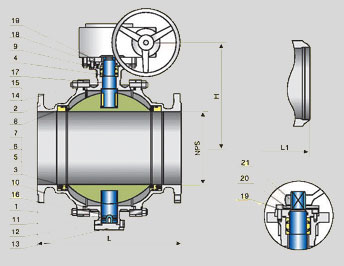

Trunnion Mounted, Cast Steel Ball Valve 150LB/300LB

Design Descriptions

  • Full Port Design
  • Split Body Three Pieces Body for 12 &Above
  • Trunnion Mounted BaU Type
  • Blow-out Proof Stem
  • Fire Durable Construction
  • Anti Static Device
  • Stopper Device
  • Flanged or Butt Welding

Applicable Standards

  • Steel Ball Valves API6D
  • Fire Safe
  • Anti Statics
  • SteeL Valves ASME B16.34
  • Face To Face ASME B16.10
  • End Flanges ASME B16.5
  • Butt Welding Ends ASME B16.25
  • Inspection And Test API 598/API 6D

Materials Of Parts

No. Part Name Carbon Steel Stainless Steel
1 Body A216-WCB A351-CF8M
2 Bonnet A216-WCB A351-CF8M
3 Ball A182-F304 A182-F316
4 Stem A276-304 A276-316
5 Seat A105+ENP Al 82-F316
6 Seat Insert Glass Filled PTFE
7 Seat Spring A313-304 Inconel X-750
8 Seat 0-Ring NPR Vrton
9 Stem 0-Ring NBR Vrton
10 Bonnet Gasket Graphtte+304 Graphite+316
11 Bonnet 0-Ring NBR Vrton
12 Antistatic Spring A313-304 A313-316
13 Lower Cover A216-WCB A182-F316
14 Bonnet Stud A193-B7 A193-B8
15 Bonnet Stud Nut A194-211 A194-8
16 Trunnion A276-304 A276-316
17 Trunnion Bearing 304+ PTFE 316+ PTFE
18 Gland Range A216-WCB A351-CF8M
19 Gland Mt A193-B7 A193-B8
20 Stop Plate Carbon Steel Carbon Steel +Zn
21 Handle Carbon Steel

Dimensional Datas Of Ansi Class 150 LB

NPS 2 2½ 3 4 6 8 10 12 14 16 18 20 24 26 28 30 32 36 in
DN 50 65 80 100 150 200 250 300 350 400 450 500 600 650 700 750 800 900 mm
L 7 7.5 8 9.00 15.5 18 21 24 27.00 30.00 34.00 36.00 42.00 45 49 51 54 60 in
(RF) 178 190 203 229 394 457 533 610 686 762 864 914 1067 1143 1245 1295 1372 1524 mm
L1 8.5 9.5 11.12 12.00 18 20.5 22 25 30.00 33.00 36.00 39.00 45.00 49 53 55 60 68 in
(BW) 216 241 283 305 457 521 559 635 762 838 914 991 1143 1245 1346 1397 1524 1727 mm
H 7 7.5 8.25 9.25 20.88 24.62 25.62 30.75 31.00 36.25 38.25 43.38 45.25 50.75 55.12 64.12 70.88 80.75 in
177 190 210 235 530 625 650 780 790 920 970 1100 1150 1290 1400 1630 1840 2050 mm
W 14 16 20 20 24 24 24 24 32 32 32 32 32 32 32 32 32 32 in
350 400 500 500 600 600 600 600 800 800 800 800 800 800 800 800 BOO 800 mm
Wt(kg.) 15 19 27 38 81 140 160 205 260 390 510 750 1200 1400 1860 2100 2530 2970 BW
13.5 15.5 24.5 32.5 76 132 147 182 241 370 495 726 1125 1250 1640 1930 2390 2760

Dimensional Datas Of Ansi Class 300 LB

NPS 2 2½ 3 4 6 8 10 12 14 16 18 20 24 26 28 30 32 36 in
DN 50 65 80 100 150 200 250 300 350 400 450 500 600 650 700 750 800 900 mm
L 8.5 9.5 11.12 12.00 15.88 19.75 22.38 25.5 30.00 33.00 36.00 39.00 45.00 49 5300 55 60 in
(RF) 216 241 283 305 403 502 568 648 762 838 914 991 1143 1245 1346 1397 1524 mm
L1 8.5 9.5 11.12 12.00 18 20.5 22 25 30.00 33.00 36.00 39.00 45.00 49 53 55 60 in
(BW) 216 241 283 305 403 521 559 635 762 838 914 991 1143 1245 1346 1397 1524 mm
H 7 7.5 8.25 9.25 20.88 24.62 25.62 30.75 31.00 36.25 38.25 43.38 45.25 50.75 55.12 64.12 70.88 in
177 190 210 235 530 625 650 780 790 920 970 1100 1150 1290 1400 1630 1840 mm
W 14 16 20 20 24 24 24 24 32 32 32 32 32 32 32 32 32 in
350 400 500 500 600 600 600 600 800 800 800 800 800 800 800 800 800 mm
Wt(kg.) 19 24 34 48 101 175 200 225 325 485 635 935 1500 1750 2450 2225 2870 BW
14 16 25 34 82 145 155 185 238 375 516 782 1280 1375 2180 1825 2260

Get Quote
